Description
1. Overview

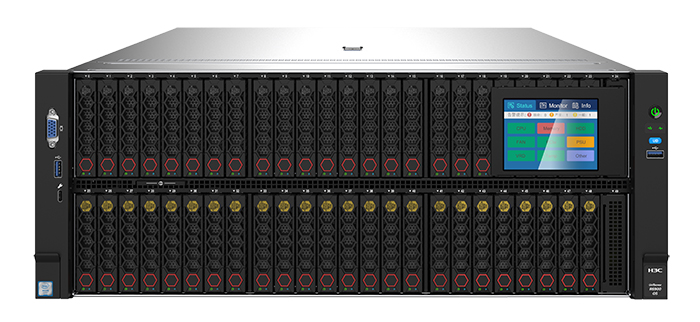

The new generation H3C UniServer R6900 G5 is an enterprise-level 4U four-way server for critical business independently developed by H3C. H3C UniServer R6900 G5 adopts a modular design of the whole machine, and its key components are fully redundant, achieving a higher level of reliability and availability. It is an ideal choice for critical business workloads, virtualization, server consolidation, databases, business processing and general 4-way data-intensive applications.
2. Features
Highly scalable enterprise-level four-way rack server for critical business
Reliability built for enterprise-level critical business
In order to enable customers’ key business to achieve business continuity, the H3C UniServer R6900 G5 server has been carefully designed in terms of reliability, such as temperature sensor redundancy. When the temperature sensor of a component is abnormal, the backup temperature sensor will replace the temperature sensor of the component to ensure the normal operation of the server. The HDM management system also adopts a redundant design. The primary and backup images are stored in different ROMs, supporting fault switching and independent upgrades to improve the reliability of the server.
H3C UniServer R6900 G5 has passed the 9-intensity earthquake resistance test of the Ministry of Industry and Information Technology’s Telecommunication Technology Laboratory. The whole machine has a strong structure and can effectively defend more than 90% of earthquake hazards in the next 50 years, and timely and effectively protect data and property safety.
Perfect and easy-to-use full life cycle management
It can be built-in with an intelligent diagnosis module and equipped with a 3.5-inch touch screen that supports multi-angle rotation. It has friendly human-computer interaction, supports basic parameter settings, views system monitoring status, and obtains detailed fault information to help users quickly troubleshoot. The front dedicated management port can be expanded with a USB Wi-Fi module, making it easy for mobile devices to access HDM via Wi-Fi, making server configuration and management faster and more convenient. It can also expand OCP Debug card or HDM U disk tool to achieve offline diagnosis.
III. Specifications
Compute
4 Intel Xeon 3rd Generation Scalable Processor Series, up to 28 cores per processor, maximum power 250W
Chipset
Intel C621A
Memory
48 DDR4 memory sticks, maximum speed 3200MT/s, support RDIMM or LRDIMM
Support 24 Intel Optane Persistent Memory PMem 200 Series
Maximum physical memory capacity of the whole machine is 18.0TB
Storage controller
Onboard SATA RAID controller, supports RAID 0/1/10/5
Optional HBA card and array card based on standard PCIe slot
Support dual M.2 card configuration Raid1, as operating system installation disk
Support SD card as boot disk
FBWC cache
Optional support up to 8GB cache, support supercapacitor protection
Storage
Support SAS/SATA HDD/SSD hard drives; optional 2.5-inch/3.5-inch hard drives*, up to 50SFF in the front
Support up to 24 U.2 NVMe hard drives in the front, support PCIe NVMe storage accelerator card
Supports SATA and PCIe M.2 options, supports dual Micro SD card kit
Network
Onboard 1 1Gbps dedicated management network port
Optional expansion of 4×1GE electrical ports or 2×10GE electrical ports/optical ports or 2×25GE optical ports through OCP 3.0 x16 open interface
Optional network adapter based on standard PCIe slot, supports 1/10/25/40/100 GE network card, IB card
Expansion slot
Up to 18 PCIe 3.0 full-height available slots and 1 OCP 3.0 x16 network card dedicated slot
Interface
Standard 1 front VGA, 1 rear VGA and 1 serial port, 6 USB 3.0 (2 front, 2 rear, 2 internal), 1 front dedicated management interface
GPU support
Supports 3 double-width GPU cards or 9 single-width GPU cards
Optical drive
Supports external optical drive
Management
HDM agentless management tool (with independent management port) and H3C iFIST/FIST management software, supports LCD touch-screen intelligent management module
Optional U-Center data center management platform
Security
Supports secure chassis, TCM/TPM security module, optional trusted silicon root firmware protection module, two-factor authentication
Optional PCIe security protection module, providing firewall, IPS, antivirus and QoS and other security protection functions
Power supply and heat dissipation
Optional up to 4 platinum-level 800W/1200W/1600W 1+1 or 2+2 redundant power supplies, optional titanium level
Optional 800W/1600W 336V DC power supply module, supports 1+1/2+2 redundancy
Supports 8 N+1 hot-swappable redundant fans
Certification
Supports CCC, environmental labeling and other certifications
Operating temperature
5℃～45℃ (Operating temperature support is affected by different configurations, please refer to the detailed product technical documentation for details)
Appearance/chassis size
4U chassis:
174.8mm (height) × 447mm (width) × 799mm (Depth) (excluding safety panel/hanging ears)
174.8mm (H) × 447mm (W) × 830mm (Depth) (including safety panel/hanging ears)
Warranty
Three years 5*9, next business day response (NBD)
