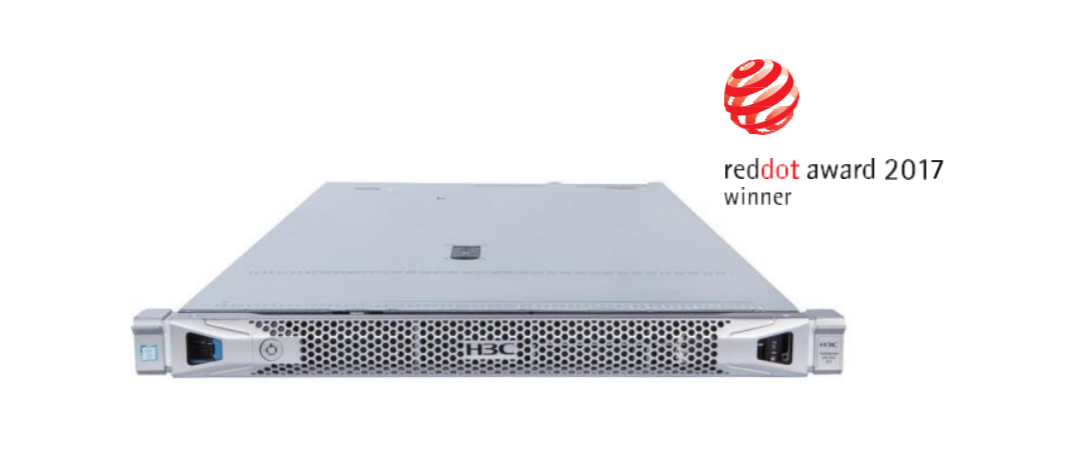

H3C UniServer R4700 G3 4LFF CTO server

Description

Meet high-density workload demands with superior performance and exceptional efficiency
H3C UniServer R4700 G3 is optimized for density and uses Intel’s latest technology platform to provide excellent computing performance in a 1U space. Through industry-leading system design, R4700 G3 is easy to use, easy to manage, safe and reliable.
As an autonomous and controllable high-performance dual-socket 1U rack server, the R4700 G3 is based on the latest Intel Xeon Scalable family processors and combined with six-channel 2933MHz DDR4 memory technology, providing users with up to 50% performance improvement. Provides excellent computing performance and IO acceleration through support for GPU accelerator cards and NVMe SSD. Supporting 96% power conversion efficiency and an operating temperature of 45°C, it significantly improves data center efficiency and provides a higher return on investment.
The R4700 G3 server is optimized for density and is ideal for high-density workloads. These workloads have extremely demanding requirements on the balance between performance, energy efficiency, and density.
》 High-density data center workloads – such as those of medium and large enterprises and cloud service providers
》 Dynamic workloads – such as databases, virtualization, private and public clouds
》 Computing-intensive applications – such as big data, business intelligence, geological exploration and research
》 Low latency and transactional applications – such as query and trading systems in the financial services industry
》To support your heterogeneous IT environment, the R4700 G3 server supports Microsoft Windows® and Linux operating systems, as well as VMware and H3C CAS environments.

Specifications

calculate
Supports up to 2 Intel? Xeon? Scalable family processors, up to 28 cores, maximum power 205W
Memory
Supports up to 24 DDR4 memories, maximum rate 2933MT/s, supports RDIMM or LRDIMM, maximum capacity 3.0TB
Supports 12 Intel Optane Data Center Persistent Memory (DCPMM)
storage controller
Standard onboard array controller, supports SATA RAID 0/1/10/5
Optional HBA card based on dedicated array card slot, supports SATA/SAS RAID 0/1/10
Optional array card based on dedicated array card slot, supports RAID0/1/10/5/6/50/60/1E
Optional HBA cards and array cards based on standard PCIe slots
FBWC supports up to 4GB DDR4-2133MHz cache
storage
Supports up to 4LFF in the front and 2SFF in the rear; supports 10SFF in the front and 2SFF in the rear; supports SAS/SATA HDD/SSD hard drives
Supports 8 front NVMe hard drives
Supports 480GB SATA M.2 option
network
One onboard 1Gbps management network port
Optional expansion of 4×1GE electrical ports or 2×10GE electrical ports/optical ports through mLOM
Optional standard PCIe slot-based network adapter
expansion slot
5 PCIe 3.0 available slots [1] (1 dedicated slot for array card, 1 dedicated slot for network card)
interface
Optional front VGA, standard rear VGA and serial port; 4 USB 3.0 (2 rear, 2 built-in); optional 2 MicroSD
GPU support
Supports 2 single-width GPUs
CD-ROM drive
Support external optical drive;
4LFF and 8SFF models support built-in optical drives
manage
HDM agentless management tool (with independent management port) and H3C FIST management software
safety
Supports chassis intrusion detection, TCM/TPM security module
Power and cooling
Optional platinum level 550W / 800W / 850W / 1200W 1+1 redundant power supply, optional titanium level 1+1 redundant power supply
Optional 800W negative 48V/336V DC power module, supporting 1+1 redundancy
Supports hot-swappable redundant fans
Certification
Supports CCC, CECP, SEPA, CE, CB and other certifications
Operating temperature
5℃～45℃
Appearance/Chassis Depth
42.9mm (height)*434.6mm (width)* 768mm (depth) (excluding safety panel)
42.9mm (height)*434.6mm (width)* 780mm (depth) (including safety panel)
Warranty
3 years 5×9 next working day response
