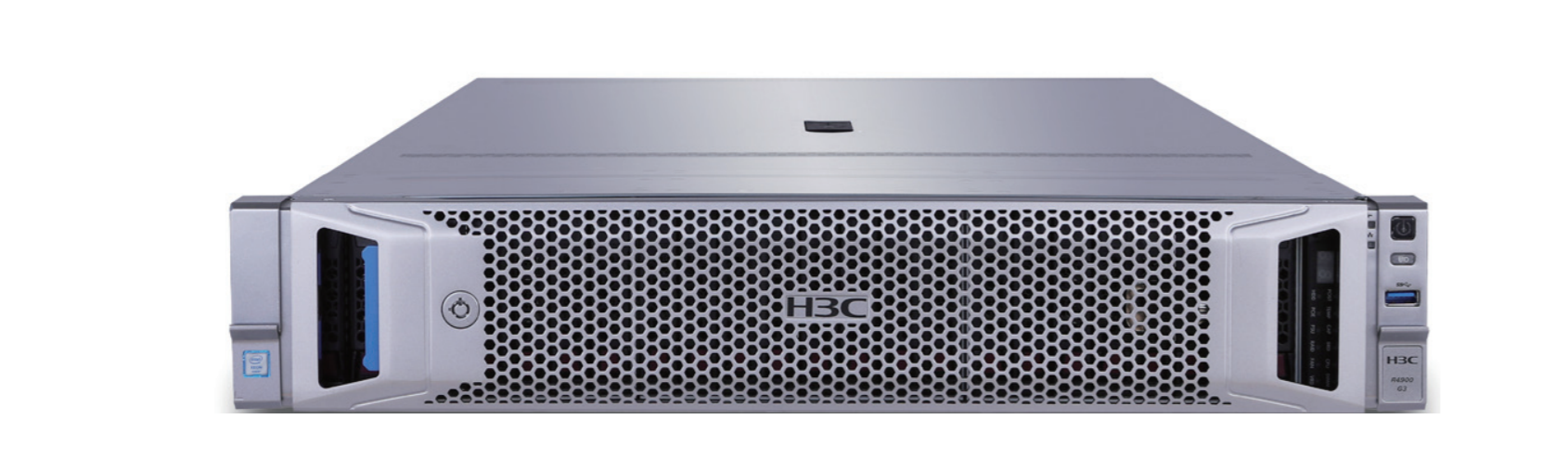

H3C UniServer R4900 G3 25SFF CTO server

Description

Fully oriented to workloads in modern data centers
The new generation H3C UniServer R4900 G3 further enhances the expansion capability and configuration flexibility for modern data centers through the support of up to 32 NVMe SSDs and the introduction of M.2 SATA SSDs.
As a self-developed mainstream 2-way 2U rack-mount server, H3C UniServer R4900 G3 is based on the latest Intel? Xeon? Scalable Family processors, which can achieve up to 71% performance improvement and 27% increase in the number of cores. With six-channel 2933MHz DDR4 memory technology, it provides users with up to 50% performance improvement.
With up to 10 PCI-E 3.0 slots[Note] and up to 40[Note] hard disks for local storage support, it achieves excellent expansion capabilities. Optional security intelligent protection module provides all-round personal protection for key businesses. 96% power supply energy efficiency and 5-50℃ standard operating temperature design provide users with higher energy efficiency returns.

With the H3C UniServer R4900 G3 server, you can deploy a single platform to address a variety of enterprise workloads:
>>Virtualization – Run multiple workloads on a single R4900 G3 to save floor space;
>>Big Data – Manage the exponential growth of data volume, including structured, unstructured and semi-structured data;
>>Storage-centric applications – Eliminate I/O bottlenecks and improve performance;
>>Data warehousing/analytics – Find the information you need on demand to make smarter business decisions;
>>Customer Relationship Management (CRM) – Get a 360-degree view of your data to improve customer satisfaction and loyalty;
>>Enterprise Resource Planning (ERP) – Trust the R4900 G3 to help you run your business in near real-time;
>>Virtual Desktop Infrastructure (VDI) – Deploy remote desktop services to give your employees the exceptional flexibility they need to work anytime, anywhere, using almost any device;
>>High-performance computing and deep learning – Power machine learning and artificial intelligence applications by providing up to 3 double-width GPU cards or 8 single-width GPU cards in 2U space.

To support your heterogeneous IT environment, the R4900 G3 server supports Microsoft? Windows? and Linux operating systems, as well as VMware and H3C CAS environments.

Specifications

Compute
Supports up to 2 Intel? Xeon? Scalable Family processors, up to 28 cores, and a maximum power of 205W
Memory
Supports up to 24 DDR4 memory sticks, with a maximum rate of 2933MT/s, supports RDIMM or LRDIMM, and a maximum capacity of 3.0TB
Supports 12 Intel Optane Data Center Persistent Memory (DCPMM)
Storage controller
Standard onboard array controller, supports SATA RAID 0/1/10/5
Optional HBA card based on dedicated slot for array card, supports SATA/SAS RAID 0/1/10
Optional array card based on dedicated slot for array card, supports RAID0/1/10/5/6/50/60/1E
Optional HBA card and array card based on standard PCIe slot
FBWC
Supports up to 4GB DDR4-2133MHz cache
Storage
Supports up to 12LFF in the front, 4LFF for internal expansion, 4LFF plus 4SFF for rear expansion[Note];
Supports up to 25SFF in the front, 8SFF for internal expansion, 3LFF plus 4SFF for rear expansion[Note] Supports SAS/SATA HDD/SSD hard drives;
Supports front/internal NVMe hard drives, up to 32 front NVMe hard drives[Note]
Supports SATA M.2 option
Network
Onboard 1 1Gbps management network port
Optional expansion of 4×1GE electrical ports or 2×10GE electrical ports/optical ports through mLOM
Optional network adapter based on standard PCIe slot
Expansion slot
Up to 10 PCIe 3.0 available slots (1 dedicated slot for array card and 1 dedicated slot for network card)
Interface
Optional front VGA, standard rear VGA and serial port, 5 USB 3.0 (1 front, 2 rear, 2 internal), optional 1 USB 2.0 and 2 MicroSD
GPU support
Supports 3 double-width GPU cards or 8 single-width GPU cards
Optical drive
Supports external optical drive;
8SFF models support built-in optical drive
Management
HDM agentless management tool (with independent management port) and H3C FIST management software
Security
Supports chassis intrusion detection, TCM/TPM security module, optional PCIe protection module, providing firewall, IPS, antivirus and QoS protection functions
Power supply and cooling
Optional platinum level 550W / 800W / 850W / 1200W / 1600W 1+1 redundant power supply, optional titanium level 1+1 redundant power supply
Optional 800W negative 48V / 336V DC power supply module, support 1+1 redundancy
Support hot-swappable redundant fans
Certification
Supports CCC, CECP, SEPA, CE, CB and other certifications
Operating temperature
5℃～50℃
Appearance/Chassis depth
2U chassis:
87.5mm (height) × 445.4mm (width) × 748mm (depth) (excluding safety panel)
87.5mm (height) × 445.4mm (width) × 771mm (depth) (including safety panel)
Warranty
3 years 5×9 next business day response
