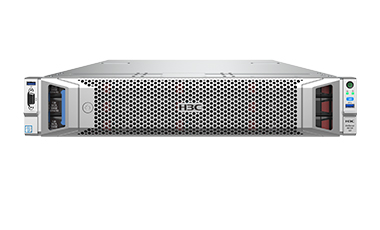

H3C UniServer R6700 G3 8SFF CTO server

supports 4 Intel Xeon second generation CPUs,48 memory slots, no array card, standard configuration supports 8SFF disk slots, supports dual power supplies, 11 PCIe slots, 2U rack server

Category:

Description

Compute
4 Intel Xeon Scalable Processor Family processors, up to 28 cores, maximum power 205W
Chipset
Intel C621
Memory
48 DDR4 memory sticks, maximum speed 2933MT/s, support RDIMM or LRDIMM, maximum capacity 6.0TB
Support 24 Intel Optane Data Center Persistent Memory (DCPMM)
Storage controller
Standard onboard array controller, support SATA RAID 0/1/10/5
Optional HBA card and array card based on standard PCIe slot (support RAID 0/1/10/5/50/6/60, etc.)
FBWC
Support up to 8GB DDR4 cache, support capacitor protection
Storage
Support SAS/SATA HDD/SSD hard drives; support up to 25 SFF in the front + 2SFF in the rear
Support up to 16 SFF UniBay slots in the front and 2 SFF UniBay slots in the rear, support NVMe/SAS/SATA hard drives
Support SATA M.2 option, supports SD card, supports dual SD card kit
Network
Onboard 2×1GE electrical port network card, 1 1GE management network card
Supports expansion of 4×1GE electrical ports, 2×10GE electrical ports, 2×10GE/2×25GE optical ports through sLOM, sLOM supports NCSI function
Supports standard PCI-E 3.0 network adapter options, supports high-performance network cards such as 10/25/40/100GE and IB/OPA, and supports FC-HBA storage adapters
Expansion slot
Up to 11 PCIe 3.0 available slots (including 1 dedicated network card slot; including 6 full-height slots; including 8 PCIe x16 slots)
Interface
Standard front VGA, rear VGA and serial port (RJ45 interface), 5 USB 3.0 (1 front, 2 rear, 2 built-in), 1 USB2.0 (front)
GPU support
Supports 8 single-width GPU cards
Optical drive
Supports external optical drive
Management
HDM agentless management tool (with independent management port) and H3C FIST management software, support built-in touch LCD diagnostic panel
Security
Supports chassis intrusion detection, TCM/TPM security module, support secure network card
Power and cooling
Optional platinum level 800W/1200W/1600W 1+1 redundant hot-swappable power supply, optional 800W titanium level 1+1 redundant power supply
Optional 800W/1600W 336V DC power supply module, support 1+1 redundancy
Support hot-swappable redundant fans
Certification
Supports CCC, SEPA and other certifications
Operating temperature
5℃~45℃ (Operating temperature support is affected by different configurations, please refer to the detailed product technical documentation for details)
Appearance/chassis size
2U standard chassis:
87.5mm (height) × 445.5mm (width) × 748mm (depth) (excluding safety panel/mounting ear)
87.5mm (height) × 445.5mm (width) × 769mm (depth) (including safety panel)
Warranty
3 years 5 x 9 next business day response
