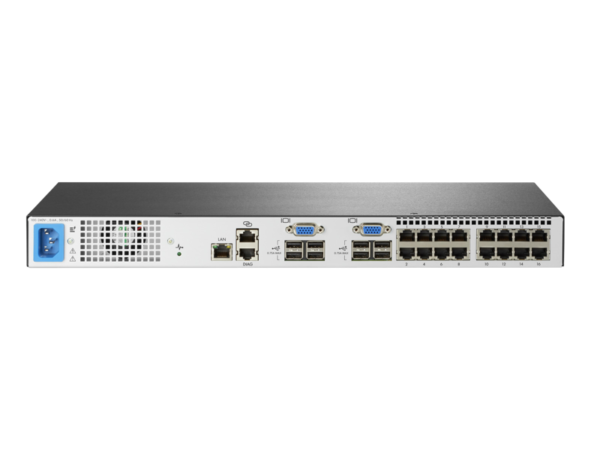

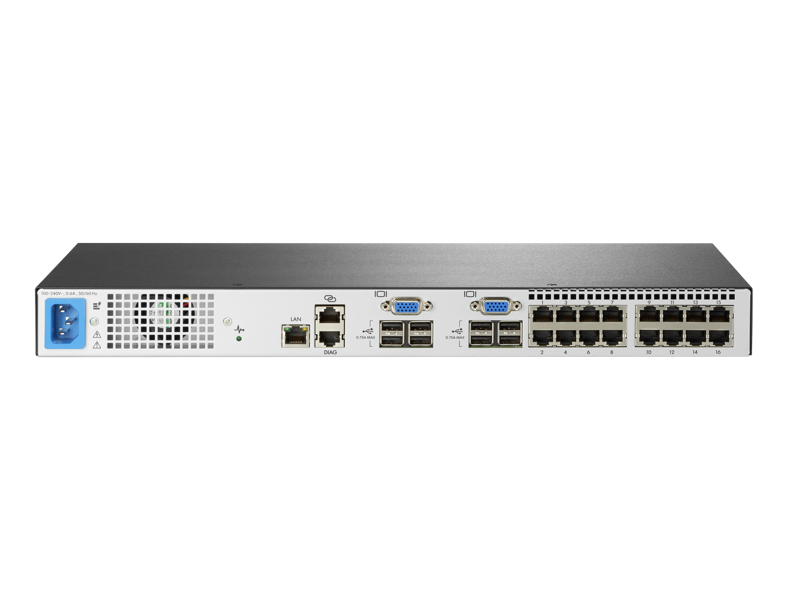

HPE 0x1x8 G3 KVM Console Switch

Description

Looking for a simple and intuitive solution that allows you to access and manage the servers in your data center? HPE Advanced Analog KVM Console Rack Switches allow you to view and manage up to 256 rack-mounted servers through a single user interface. They utilize a local on-screen display (OSD) interface, accessed through a rack console such as the HPE LCD8500, which provides an intuitive menu for accessing each connected server or serial management device. The HPE Advanced Analog KVM Console Switches support an optional USB remote access key, allowing you to upgrade to KVM over IP functionality, providing remote access and management through the On-Board Web Interface (OBWI). The standard rack mount of the console switch will share 1U (1.75 inches) of front panel rack space with the rack console. However, each model can also be mounted in a “zero U” configuration by mounting on the side rails of the rack.

Features
View and manage up to 256 servers through a single user interface
HPE Advanced Analog KVM Switches utilize a local on-screen display (OSD) that provides access to system-related information such as the selected server name, status, power-on test data, and configuration menus.
HPE Advanced Analog KVM Switches support an optional USB Remote Access Key, allowing you to upgrade to KVM over IP functionality, providing remote access and management through the Onboard Network Interface (OBWI).
HPE Advanced Analog KVM Switches include Programmable Scan, a utility that allows you to assess system performance by sequentially scanning any or all servers managed through the console switch.
Available in 8-port and 16-port models
HPE Advanced Analog KVM Switches include mounting hardware that supports “Zero U” installation on the side and back of a standard IT rack, saving valuable space within the rack.
HPE Advanced Analog KVM Switches support a variety of server connections, including PS/2, USB, and VT100 interface adapters (serial console support), as well as support for HPE BladeSystems through the front diagnostic connector.
Manageability
To protect against unauthorized users, HPE Advanced Analog KVM Switches offer a password option.
HPE Location Discovery Service (LDS) and Power Discovery Service (PDS) are supported when connected to HPE Intelligent Power Distribution Units (PDUs) and HPE LCD8500 1U Rack Mount Console Kit (requires HPE Location Discovery Service LCD8500 Kit).
Onboard Network Interface (OBWI) – Built-in web server provides remote management of KVM.
Advanced Analog KVM Switches to Fit Your Environment
HPE Advanced Analog KVM Switches are designed to work with HPE server, storage, and networking products.
You can use HPE Rack and Power products with non-HPE IT equipment; however, when used with Hewlett-Packard Enterprise servers, you can leverage a wide range of server- and IP-based tools to maintain and manage all the equipment in the rack.
Don’t spend extra budget on extended warranties on your rack and power infrastructure. HPE Pointnext Operational Services purchased for servers extend to our rack and power infrastructure products such as racks, power distribution units, uninterruptible power systems, and KVM console switches.

Technical parameters

Input voltage: 100 to 240V AC
Power: 20W
Number of server ports: 8
CAT5 cable: Need to be purchased separately
Number of servers, maximum: 256
Number of simultaneous users, maximum: 1
Tiering support: Yes
Warranty: 3/0/0
Detailed product description: HPE 0x1x8 G3 KVM analog console switch with 8 ports in 1U rack mount. Can be mounted in a zero U profile in the side rails of an HPE Rack.
Weight: 4.6 lb/2.04 kg
Dimensions: 17 x 6.5 x 1.72 in/43.8 x 16.51 x 4.36 cm
