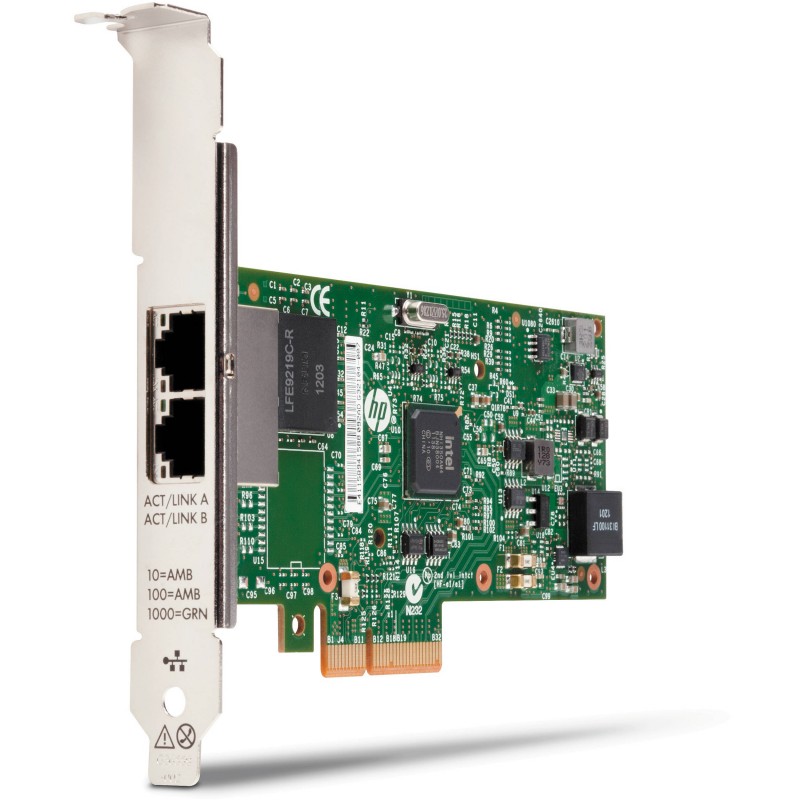

HPE Eth 1Gb 2P 361T Adapter dual-port Gigabit network card

Description

Main Specifications
Manufacturer: HPE
MPN: 652497-B21
Spare Part: 656241-001
Type: Networking
Adapter Type: 2 Port Adapter
Form Factor: Plug-in card-low profile
Interface (Bus) Type: PCI Express 2.0 x4
PCI Specification Revision: PCIe 2.0
SKU: 652497-B21

Dimensions & Weight
Depth: 5.3 inch
Height: 2.5 inch

Networking
Ports: Gigabit Ethernet x 2
Connectivity Technology: Wired
Cabling Type: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate: 1 Gbps
Remote Management Protocol: SNMP
Status Indicators: Link activity, port transmission speed
Features: Auto-negotiation, wake on LAN (WOL), network fault tolerance (NFT), Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Processor/Memory
Processor: 1 x I350-Intel

Expansion / Connectivity
Interfaces: 2 x 1000Base-T – RJ-45
Compatible Slots: 1 x PCI Express 2.0 x4 – low-profile

Miscellaneous
Included Accessories: Low-profile bracket
Compliant Standards: FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A

System Requirements
OS Required: SuSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0

Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 – 90% (non-condensing)

Compatibility
ProLiant DL Series: DL165 G7 DL580 G7 DL585 G7 DL980 G7 DL160 G8 G9 (Gen8 Gen9) DL320e G8 G9 (Gen8 Gen9) DL360 G10 (Gen10) DL360e G8 G9 (Gen8 Gen9) DL360p G8 G9 (Gen8 Gen9) DL380 G10 (Gen10) DL380e G8 G9 (Gen8 Gen9) DL380p G8 G9 (Gen8 Gen9) DL385 G10 (Gen10) DL385p G8 G9 (Gen8 Gen9) DL560 G8 G9 (Gen8 Gen9) DL560 G10 (Gen10) DL580 G10 (Gen10)
ProLiant ML Series: ML110 G10 (Gen10) ML310e G8 G9 (Gen8 Gen9) ML350 G10 (Gen10) ML350e G8 G9 (Gen8 Gen9) ML350p G8 G9 (Gen8 Gen9)
ProLiant SL Series: SL230s G8 G9 (Gen8 Gen9) SL250s G8 G9 (Gen8 Gen9) SL270s G8 G9 (Gen8 Gen9)
