Description
Powerful and balanced

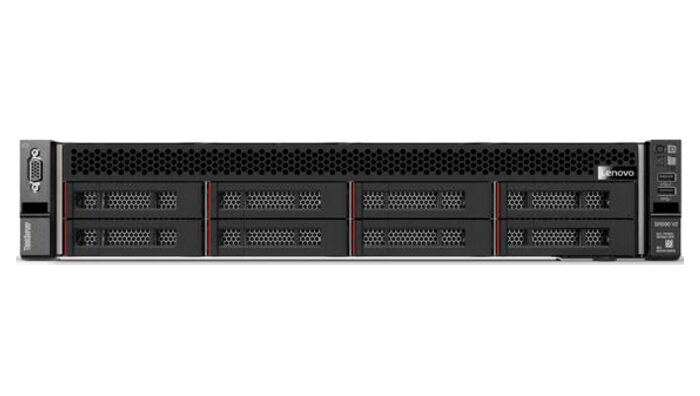

Designed for rack environments that require dual-socket processors and large memory capacity, the Lenovo ThinkServer SR588 can meet the needs of large and medium-sized enterprises for cloud and big data environments. The Lenovo SR588 is a balanced mid-range rack server that is also well suited for small-scale virtualization, collaboration and productivity applications, as well as caching and logging. With 1.5 times higher memory bandwidth than the previous generation, two 2nd Generation Intel? Xeon? Scalable Processor Platinum Series can improve agility and manage demanding workloads with large amounts of data. Intel OptaneTM DC persistent memory combined with up to 1TB of 2933MHz TruDDR4 memory capacity allows applications to run faster and more efficiently, and improves performance at a lower cost and higher overall value.
Flexible and scalable
The Lenovo SR588 server supports up to 16 hot-swap 2.5-inch drive bays, or 14 hot-swap or simple-swap 3.5-inch drive bays. Up to four 2.5-inch or 3.5-inch bays can be AnyBays, supporting not only SAS/SATA drives, but also direct-attached NVMe drives (which can bypass the SAS bus) for ultimate storage performance. In addition, the SR588 supports SAS and SATA HDDs and SSDs with up to 12Gb SAS throughput, as well as up to two M.2 drives, for faster and more secure OS booting. The Lenovo SR588 offers storage flexibility, multiple types of NIC expansions including LOM, ML2 and PCIe, and replaceable I/O expansion cards for a variety of adapter slot configurations.
Safe and reliable
For years, Lenovo servers have been the most reliable in the industry. Lenovo servers once again topped the list in the latest ITIC x86 server reliability survey*. The SR588 is no exception, and includes numerous features to improve the reliability and security of your servers and your most important data. ThinkShield is a comprehensive, end-to-end security approach that starts with development and runs through the entire supply chain and the life cycle of your equipment. From the data center to the network edge, our priority is protecting your business with every product. Lenovo XClarity Controller is the embedded management engine on all ThinkSystem servers that standardizes, simplifies, and automates basic server management tasks. Lenovo XClarity Administrator is a virtualization application that centrally manages ThinkSystem servers, storage, and networking, reducing configuration time by up to 95% compared to manual operations. XClarity can be seamlessly integrated into existing IT environments by running XClarity Integrator, helping to simplify IT management, accelerate configuration, and contain costs.
These capabilities make the server ideal for proxy caching, cloud, CRM, security, virtualization, streaming, big data, databases, database-driven web serving, mail serving, and many other workloads.
Specifications
Form Factor
2U
Processors
Up to 2 2nd Gen Intel Xeon Scalable Processor Platinum 150W, up to 26 cores per CPU
Memory
Up to 1TB of 2933MHz TruDDR4 memory in 16 slots
Expansion Slots
Up to 6 PCIe 3.0 for multiple I/O configurations
Drive Bays
Up to 16 2.5″ or 14 3.5″ hot-swap HDDs or up to 8 3.5″ simple-swap HDDs; 4 AnyBay bays optional
Internal Storage
Up to: 168TB (3.5″ SAS/SATA HDD); 107.6TB (3.5″ SSD); 38.4TB (2.5″ SAS/SATA); 122.9TB (2.5″ SSD); 16TB (direct-attached 2.5″ NVMe); up to 2 M.2 boot drives
Networking
2 GbE ports standard; LOM standard Interfaces; ML2 optional
NIC Ports
2x GbE standard; 1x GbE dedicated management port standard; up to 2x 1GbE, 2x 10GBase-T, or 2x 10GBase SFP+ optional
Power Supplies
Up to 2x hot-swappable/redundant 550W/750W Platinum, 750W Titanium
High Availability
Hot-swappable HDD/SSD/NVMe, hot-swappable power supplies and fans, light path diagnostics, PFA for all major components, ASHRAE A4 support (with limitations), optional XClarity Pro with remote alarming.
Security Features
ThinkShield, locking panel, locking cover; TPM 2.1 standard; TCM optional
RAID Support
Hardware RAID 0, 1, 10, 5, 50 standard on hot-swap 2.5-inch models; software RAID 0, 1, 10, 5 on easy-swap 3.5-inch models
Management
XClarity Administrator; XClarity Controller (embedded hardware); optional XClarity PRO
OS Support
Microsoft, SUSE, Red Hat, VMware
Warranty
3-year 5*9 NBD nationwide on-site limited warranty service
