Description
Suitable for compute-intensive workloads

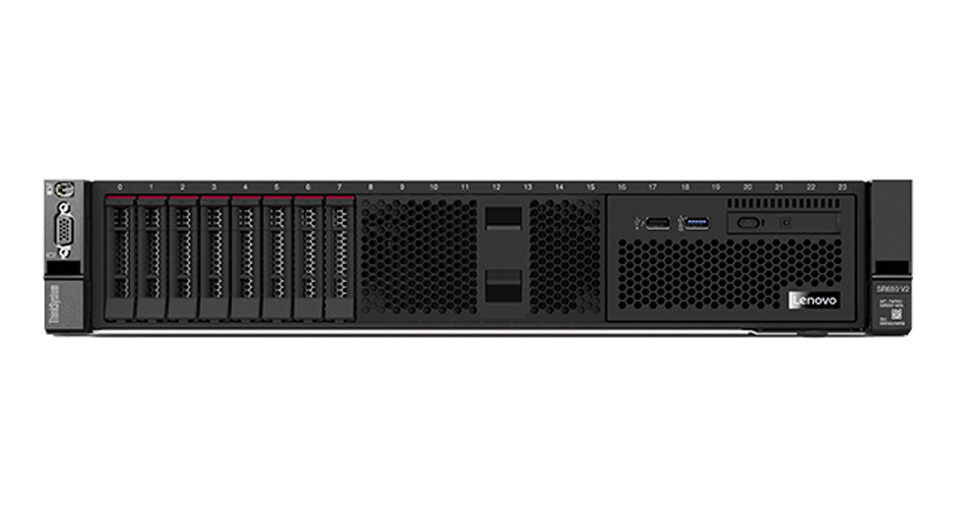

The Lenovo ThinkSystem SR658/SR650 server is a popular 2U dual-socket (dual CPU socket) server for large and medium-sized enterprises and cloud service providers. The Lenovo SR658/SR650 server inherits the original IBM ThinkSystem 3650M5 excellent genes and its use has also expanded to the global range. With 205W CPU, low-latency NVMe hard drive and high-power GPU, it can achieve excellent performance.
The highly flexible and configurable Lenovo ThinkSystem SR658/SR650 server has Lenovo’s years of established reliability and is an ideal platform for hyper-converged infrastructure (HCI) or software-defined storage (SDS).
Comprehensive and scalable
Lenovo SR658/SR650 servers support Intel Optane DC persistent memory and up to two 2nd Generation Intel Xeon Scalable Processor Platinum Series, with overall performance improved by 36% over the previous generation, supporting 2 300W high-performance GPUs and ML2 NIC adapters with shared management capabilities; unique Lenovo AnyBay technology allows flexible mixing of SAS/SATA HDD/SSD and NVMe SSD in the same hard drive bay; now supports 24 NVMe drives.
Specifications
Appearance
2U rack server
Processor
Up to 2 2nd Generation Intel Xeon Scalable Processor Platinum Series, up to 205W
Memory
24 memory slots up to 9TB (data from official product brochure)
Expansion slots
Support up to 7 PCIe 3.0, including 1 dedicated PCIe slot for RAID adapter, 3 available by default for single-socket CPU)
Drive bays
Up to 14 3.5-inch hot-swappable hard drives; up to 24 2.5-inch hard drives (up to 12 AnyBays, or up to 24 NVMe); 2 M.2 boot drives (RAID1)
HBA/RAID support
Hardware RAID (up to 24 ports) with flash cache; up to 16-port HBA
Security and availability features
TPM1.2/2.0; PFA; hot-swappable/redundant drives, fans and power supplies; continuous operation at 45 degrees Celsius; optical path diagnostic LED; dedicated USB port for front-end access diagnostics
Network interface
2/4 ports 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1 dedicated 1GbE management port
Power
Up to 2 hot-swappable/redundant 550W/750W/11OOW/1600W 80 PLUS Platinum Power Supplies; or 750W 80 PLUS Titanium Power Supplies; or -48V DC 80 PLUS Platinum Power Supplies
Management
XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery,
XClarity Integrator plug-in and XClarity Energy Manager centralized server power management
OS support
Microsoft, SUSE, Red Hat, VMware
Warranty
3-year 5*9 NBD nationwide on-site limited warranty service
